# QDI COMPUTER, INC.
TVGA9680 PCI/44256/SMT
Card Type Video card
Video Chip Set 9680
Highest Resolution Supported 1600 x 1200
Maximum Video Memory 2MB DRAM
Data Bus PCI
Video Types Supported XVGA

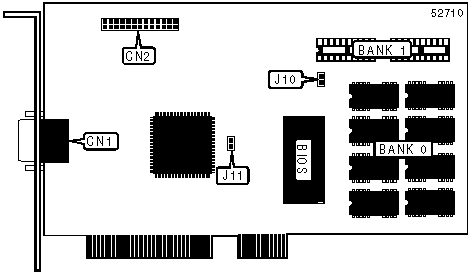

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Video port | CN1 | Feature connector | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (8) 1024KB x 1 | None |
|------------------+--------------------+--------------------|
| 2MB | (8) 1024KB x 1 | (2) 4096KB x 1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MCLK EDO DRAM CONFIGURATION |
|------------------------------------------------------------|
| Speed | J10 | J11 |
|------------------------+-----------------+-----------------|
| ยป | 57 or 61 | Closed | Open |
|---+--------------------+-----------------+-----------------|
| | 52 or 57 | Closed | Closed |
|---+--------------------+-----------------+-----------------|
| | 65 or 72 | Open | Open |
|---+--------------------+-----------------+-----------------|
| | 61 or 65 | Open | Closed |
+------------------------------------------------------------+
