# REVEAL COMPUTER PRODUCTS
VC400
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 1MB VRAM
Video Types Supported VGA
Highest Resolution Supported 1024 x 768
Data Bus 16-bit ISA

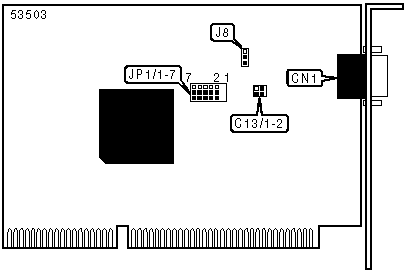

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label |
|-------------------------------+----------------------------|
| 9-pin digital video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+-------+-------------------|
| » | IRQ 5 enabled | C13/1 | Closed |
|---+----------------------------+-------+-------------------|
| | IRQ 2 enabled (not used) | C13/2 | Closed |
|---+----------------------------+-------+-------------------|
| » | Mouse port disabled | J8 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| | Mouse port enabled | J8 | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS (CONTINUED) |
|------------------------------------------------------------|
| Function | JP1/2 | JP1/3 | JP1/4 | JP1/5 | JP1/6 | JP1/7 |
|------------+-------+-------+-------+-------+-------+-------|
|Unidentified|Pins 1 |Pins 2 |Pins 1 |Pins 1 |Pins 2 |Pins 2 |
| | & 2 | & 3 | & 2 | & 2 | & 3 | & 3 |
|------------------------------------------------------------|
|Note: Designated pins are closed. JP1/1 has no configurable |
|settings. |
+------------------------------------------------------------+
