# QDI COMPUTER, INC.
S3 TRIO 64 PCI
Card Type Graphics accelerator
Video Chip Set Unidentified
Maximum Video Memory 1MB/2MB
Video Types Supported EGA, VGA
Highest Resolution Supported 1280 x 1024
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

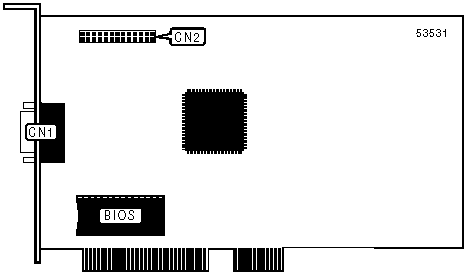

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
