# PRISM IMAGING SYSTEMS
PRISM ELAN, PRISM ELAN+
Card Type Video card
Video Chip Set Prism Imaging Systems
Maximum Video Memory 512KB DRAM
Video Types Supported Monochrome, CGA, EGA, VGA
Highest Resolution Supported 1024 x 768
Data Bus 8-bit ISA

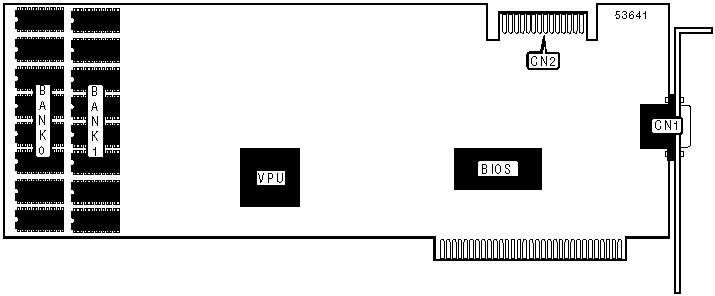

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+-----------------------+-----------------------|
| 256KB | (8) 32K x 8 | None |
|------------+-----------------------+-----------------------|
| 512KB | (8) 32K x 8 | (8) 32K x 8 |
+------------------------------------------------------------+
