       # PHILIPS CONSUMER ELECTRONICS, CO.

          PCA11MP

          Card Type             MPEG decoder
          Video Chip Set        Unidentified
          Maximum Video Memory  Unidentified

          I/O Options           Speaker/line out, TV out, video port (2)
          Video Types Supported VGA, XVGA
          Highest Resolution    Unidentified
          Supported
          Data Bus              16-bit ISA

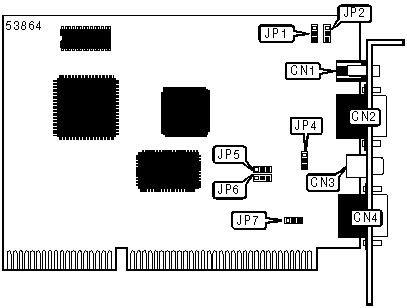

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        | Label |     Function      | Label |
          |------------------------+-------+-------------------+-------|
          | Speaker/line out       |  CN1  | TV out            |  CN3  |
          |------------------------+-------+-------------------+-------|
          | 15-pin analog video    |  CN2  | 15-pin analog     |  CN4  |
          | port                   |       | video port        |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      SPEAKER/LINE OUT                      |
          |------------------------------------------------------------|
          |      Function      |        JP1        |        JP2        |
          |--------------------+-------------------+-------------------|
          | ยป | Speaker out    | Pins 2 & 3 closed | Pins 2 & 3 closed |
          |---+----------------+-------------------+-------------------|
          |   | Line out       | Pins 1 & 2 closed | Pins 1 & 2 closed |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       MODE SELECTION                       |
          |------------------------------------------------------------|
          |  MODE   |    JP4     |    JP5     |    JP6     |    JP7    |
          |---------+------------+------------+------------+-----------|
          | NTSC TV | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 | Pins 1 &  |
          |         |   closed   |   closed   |   closed   | 2 closed  |
          |---------+------------+------------+------------+-----------|
          | PAL TV  | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 | Pins 2 &  |
          |         |   closed   |   closed   |   closed   | 3 closed  |
          +------------------------------------------------------------+
