# PINE TECHNOLOGY
PT-580
Card Type Video card
Video Chip Set IGS
Maximum Video Memory 2MB DRAM
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1200
Data Bus 32-bit PCI

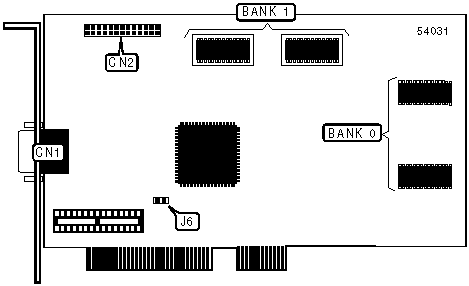

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | (VGA) | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | IRQ 9 disabled | J6 | Open |
|---+------------------------------------+-------+-----------|
| | IRQ 9 enabled | J6 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-------------------+--------------------+-------------------|
| » | 1 MB | (2) 512 KB | None |
|---+---------------+--------------------+-------------------|
| | 2 MB | (2) 512 KB | (2) 512 KB |
+------------------------------------------------------------+
