# QUADRANT INTERNATIONAL
CINEMASTER
Card Type DVD playback card
Video Chip Set S3
Maximum Video Memory Unidentified
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1280
Data Bus 32-bit PCI
IMG IMG 1
+------------------------------------------------------------+

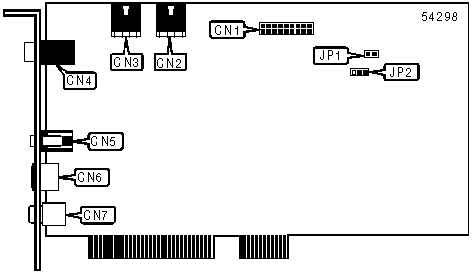

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|--------------------------+-------+-----------------+-------|
| Video port | CN1 | Line out | CN5 |
| connector-internal | | | |
|--------------------------+-------+-----------------+-------|
| Audio in-CD ROM | CN2 | S-video out | CN6 |
|--------------------------+-------+-----------------+-------|
| Audio in- CD ROM | CN3 | Composite video | CN7 |
| | | out | |
|--------------------------+-------+-----------------+-------|
| S/PDIF out | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO INTERFACE |
|------------------------------------------------------------|
| Setting | JP1 | JP2 |
|------------------------+--------------+--------------------|
| ยป | Video inlay | Open | Open |
|---+--------------------+--------------+--------------------|
| | VMI 1.4 | Closed | Pins 2 & 3 closed |
|---+--------------------+--------------+--------------------|
| | LBP | Closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
