# REALTEK
RTVGA 3106
Card Type Video card
Video Chip Set Realtek
Maximum Video Memory 1MB DRAM
Video Types Supported VGA
Highest Resolution Supported 1280 x 1024
Data Bus 16-bit ISA

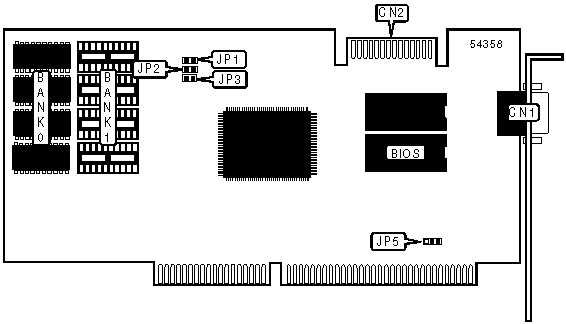

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | CN1 | Feature connector | CN2 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| | Feature connector – connect to VCC | JP1 | Closed |
|---+------------------------------------+-------+-----------|
| | Feature connector – floating | JP1 | Open |
|---+------------------------------------+-------+-----------|
| | Address decoding – unlatched | JP2 | Open |
|---+------------------------------------+-------+-----------|
| | Address decoding – latched | JP2 | Closed |
|---+------------------------------------+-------+-----------|
| » | Interlaced mode – enabled | JP3 | Open |
|---+------------------------------------+-------+-----------|
| | Interlaced mode – disabled | JP3 | Closed |
|---+------------------------------------+-------+-----------|
| | IRQ 9 enabled | JP5 | Pins 1 & |
| | | | 2 closed |
|---+------------------------------------+-------+-----------|
| | IRQ 7 enabled | JP5 | Pins 2 & |
| | | | 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION (DRAM) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------+-----------------------+-----------------------|
| 512KB | (4) 256KB | None |
|------------+-----------------------+-----------------------|
| 1MB | (4) 256KB | (4) 256KB |
+------------------------------------------------------------+
