# PROLINK COMPUTER, INC.
PV-BT848 (VER.1)
Card Type Video capture card
Video Chip Set Unidentified
Highest Resolution Supported Unidentified
Data Bus 32-bit PCI

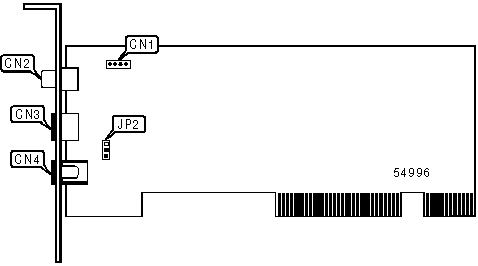

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Microphone out | CN1 | Philips CCD video in | CN3 |
|-------------------+-------+------------------------+-------|
| CVBS video in | CN2 | DC power | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | JP2 |
|-----------------------------------+------------------------|
| ยป | +5V DC power selection | Pins 1 & 2 closed |
|---+-------------------------------+------------------------|
| | +12V DC power selection | Pins 2 & 3 closed |
+------------------------------------------------------------+
