# PROLINK COMPUTER, INC.
PV-I1740III
Card Type Video capture board
Video Chip Set Unidentified
Maximum Video Memory 8MB SDRAM
Video Types Supported Monochrome, CGA, EGA, VGA, XVGA
Highest Resolution Supported 1600 x 1200
Data Bus 64-bit PCI

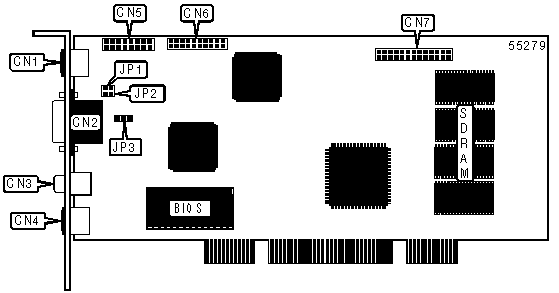

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| S-video/audio cable | CN1 | DTV-camera | CN5 |
| connector | | | |
|------------------------+-------+-------------------+-------|
| VGA connector | CN2 | Tuner connector | CN6 |
|------------------------+-------+-------------------+-------|
| Composite video out | CN3 | Feature connector | CN7 |
|------------------------+-------+-------------------+-------|
| S-video out | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------+---------------+----------------------|
| NTSC | JP3 | Pins 1 & 2 closed |
|---------------------+---------------+----------------------|
| PAL | JP3 | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DDC SELECTION |
|------------------------------------------------------------|
| Function | JP1 | JP2 |
|------------------------+---------------+-------------------|
| DDC enabled | Closed | Closed |
|------------------------+---------------+-------------------|
| DDC disabled | Open | Open |
+------------------------------------------------------------+
