# SIXGRAPH COMPUTING LTD.
WIZARD 924
Category Video
Video Types Supported XVGA
Video Processor S3 86C924
Highest Resolution Supported 1280 x 1024
Data Bus Type 16-bit ISA
Memory Type VRAM
Maximum Onboard Memory 1024KB

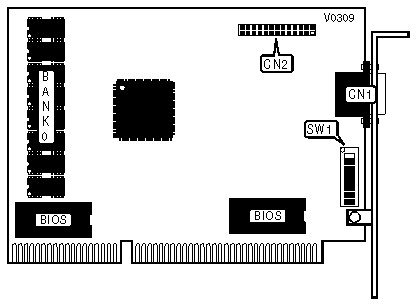

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+-----------+-------------+-----------|
| 15-pin analog video | CN1 | Feature | CN2 |
| connector | | connector | |
|------------------------------------------------------------|
| Note:Contact dealer when using feature connector as it is |
| not VESA standard. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO FREQUENCY SETTINGS |
|------------------------------------------------------------|
| Frequency | Mode | SW1/5 | SW1/6 | SW1/7 | SW1/8 |
|-----------+----------------+-------+-------+-------+-------|
| » | 640 | Non-interlaced | On | On | On | On |
| | x | | | | | |
| | 480 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 1280 | Non-interlaced | Off | On | On | On |
| | x | | | | | |
| | 1024 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 1280 | Interlaced | On | Off | Off | Off |
| | x | | | | | |
| | 1024 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 1024 | Non-interlaced | On | Off | Off | Off |
| | x | | | | | |
| | 768 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 1024 | Non-interlaced | On | Off | On | On |
| | x | | | | | |
| | 768 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 1024 | Interlaced | On | Off | On | Off |
| | x | | | | | |
| | 768 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 800 | Non-interlaced | On | Off | On | On |
| | x | | | | | |
| | 600 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 800 | Non-interlaced | On | On | Off | Off |
| | x | | | | | |
| | 600 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 800 | Non-interlaced | On | On | Off | On |
| | x | | | | | |
| | 600 | | | | | |
|----+------+----------------+-------+-------+-------+-------|
| | 640 | Non-interlaced | On | On | On | Off |
| | x | | | | | |
| | 480 | | | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TURBO MODE SELECT |
|------------------------------------------------------------|
| Turbo | SW1/2 |
|---------------------------------+--------------------------|
| » | Disabled | Off |
|---+-----------------------------+--------------------------|
| | Enabled | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO INTERRUPT SELECT |
|------------------------------------------------------------|
| IRQ9 | SW1/3 |
|----------------------------------+-------------------------|
| » | Enabled | On |
|----+-----------------------------+-------------------------|
| | Disabled | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BUS WIDTH SELECTION |
|------------------------------------------------------------|
| Size | SW1/4 |
|---------------------------------+--------------------------|
| » | 8-bit | Off |
|----+----------------------------+--------------------------|
| | 16-bit | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED SETTINGS |
|------------------------------------------------------------|
| Switch | Setting |
|------------------------------+-----------------------------|
| SW1/1 | Off |
+------------------------------------------------------------+
