# STB SYSTEMS, INC
VGA 1024
Category Video
Video Types Supported XVGA
Video Processor Tseng Laboratories, Inc.
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 512KB

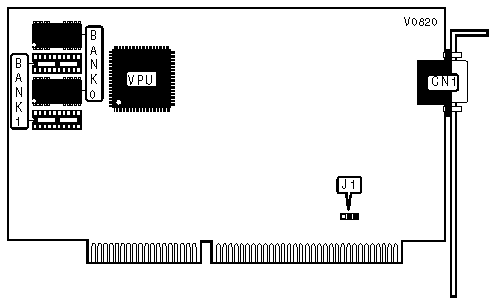

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IRQ2 |
|------------------------------------------------------------|
| Setting | J1 |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| » | 256KB | (2) 256K x 4 | None |
|---+--------------+--------------------+--------------------|
| | 512KB | (2) 256K x 4 | (2) 256K x 4 |
+------------------------------------------------------------+
