# TWINHEAD INTERNATIONAL CORP.
CT-6090S
Category Video
Video Types Supported CGA/Monochrome
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8 bit ISA
Memory Type None
Maximum Onboard Memory N/A

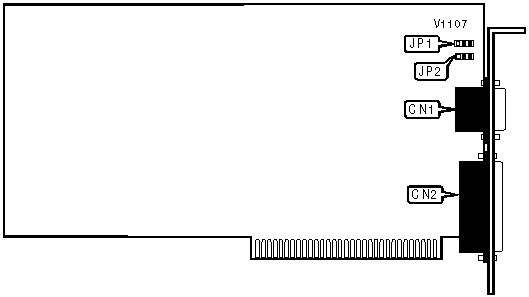

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+-----------+--------------|
| 15-pin analog video | CN1 | Light pen | Unidentified |
| port | | | |
|----------------------+----------+-----------+--------------|
| Parallel port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY |
|------------------------------------------------------------|
| Mode | JP1 |
|----------------------------+-------------------------------|
| Color | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| Mono | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT |
|------------------------------------------------------------|
| Setting | JP2 |
|----------------------------+-------------------------------|
| Enabled | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
