# STB SYSTEMS, INC.
HORIZON-VL VER. 2
Category Video
Video Types Supported XVGA
Video Processor Unidentified
Highest Resolution Supported 1280 x 1024
Data Bus Type 32-bit VESA Local Bus
Memory Type DRAM
Maximum Onboard Memory 1MB

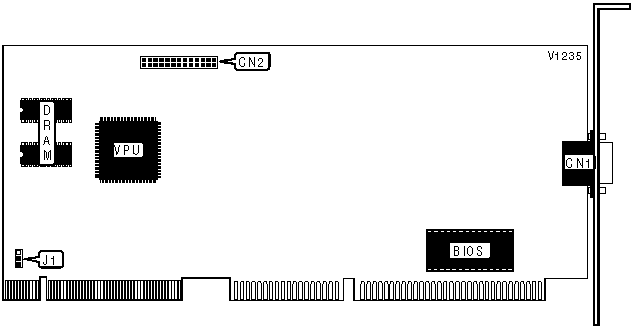

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT CONFIGURATION |
|------------------------------------------------------------|
| IRQ 2/9 | J1 |
|----------------------------+-------------------------------|
| ยป | Disabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
