# STB SYSTEMS, INC.
EVOLUTION VGA
Category Video
Video Types Supported XVGA
Video Processor Cirrus Logic, Inc.
Highest Resolution Supported 1280 x 1024
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 1MB

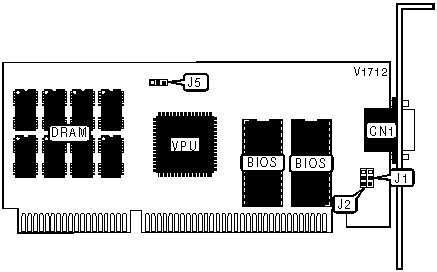

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ZERO WAIT STATE |
|------------------------------------------------------------|
| Setting | J1 |
|----------------------------+-------------------------------|
| » | Disabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| IRQ 2/9 | J2 |
|----------------------------+-------------------------------|
| » | Disabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Enabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS INTERFACE |
|------------------------------------------------------------|
| Setting | J5 |
|----------------------------+-------------------------------|
| » | 8-bit | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | 16-bit | Pins 2 & 3 closed |
+------------------------------------------------------------+
