# STB SYSTEMS, INC.
POWERGRAPH 64 VIDEO VL
Card Type Video card
Video Chip Set S3 Trio64V+
Highest Resolution Supported 1280 x 1024
Maximum Video Memory 2MB DRAM
Data Bus 32-bit VESA Local Bus
Video Types Supported XVGA
IMG IMG 1
+------------------------------------------------------------+

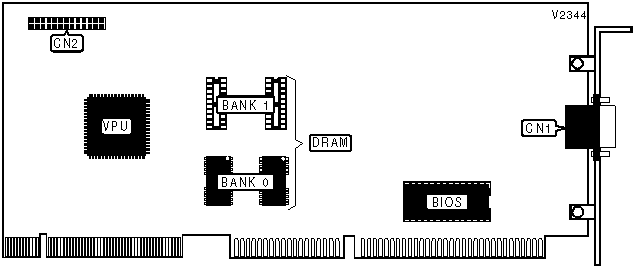

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------+--------------------------------+-----------------|
| 1MB | (2)256KB x 16 or (2) 512KB x 8 | None |
|---------+--------------------------------+-----------------|
| 2MB | (2)256KB x 16 or (2) 512KB x 8 | (2)256KB x 16 |
+------------------------------------------------------------+
