# TAXAN USA CORPORATION
KIF-3800 (MODEL 555) SUPER COLOR GRAPHICS BOARD
Card Type Video card
Video Chip Set 6845
Highest Resolution Supported 640 x 200
Maximum Video Memory Unidentified
Data Bus 8-bit ISA
Video Types Supported Monochrome, CGA

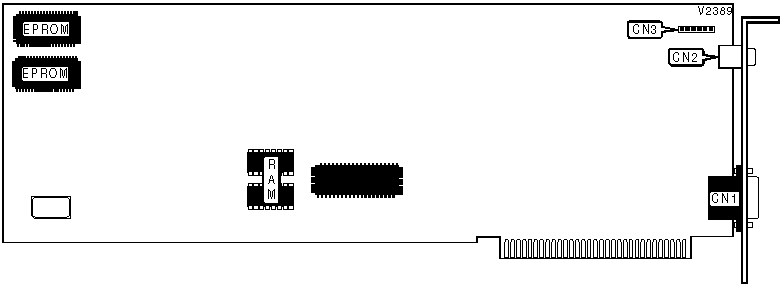

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 9-pin direct drive | CN1 | Light pen connector | CN3 |
| connector | | | |
|----------------------+-------+---------------------+-------|
| Composite video | CN2 | | |
+------------------------------------------------------------+
