# TELEVIDEO SYSTEMS, INC.
TELEMPEG PRO
Card Type Video MPEG card,
Video Chip Set Philips
Highest Resolution Supported 1024 x 768
Maximum Video Memory Unidentified
Data Bus 16-bit ISA
Video Types Supported XVGA

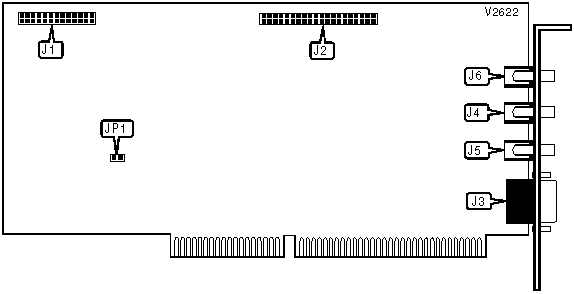

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Feature connector | J1 | Video out | J4 |
|-----------------------+-------+--------------------+-------|
| TeleTune Pro | J2 | Loopback connector | J5 |
| connector | | | |
|-----------------------+-------+--------------------+-------|
| 15-pin analog video | J3 | Audio out | J6 |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: The configuration of JP1 is unidentified. |
+------------------------------------------------------------+
