# SPEA SOFTWARE AG
V7 VEGA 16-BIT VGA
Card Type Video card
Video Chip Set Unidentified
Highest Resolution Supported 800 x 600
Maximum Video Memory 256KB RAM (Location unidentified)
Data Bus 16-bit ISA
Video Types Supported VGA

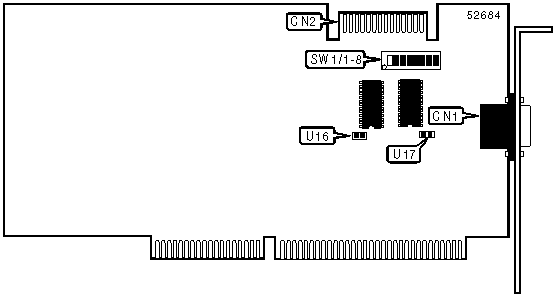

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VGA Feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/1 | Off |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/2 | Off |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/3 | Off |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | SW1/4 | Off |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | VGA-16 Emulation enabled | SW1/5 | On |
|---+---------------------------------+-------+--------------|
| | VGA-16 Emulation disabled | SW1/5 | Off |
|---+---------------------------------+-------+--------------|
| » | Allow 16-bit ROM access | SW1/6 | On |
|---+---------------------------------+-------+--------------|
| | Force 8-bit ROM access | SW1/6 | Off |
|---+---------------------------------+-------+--------------|
| » | Allow 16-bit memory access | SW1/7 | On |
|---+---------------------------------+-------+--------------|
| | Force 8-bit memory access | SW1/7 | Off |
|---+---------------------------------+-------+--------------|
| » | Allow VGA-16 Extensions | SW1/8 | Off |
|---+---------------------------------+-------+--------------|
| | Force Standard VGA mode | SW1/8 | On |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | U16 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | U17 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
