# SIIG, INC.
AURORA 4000 PLUS
Card Type Video card
Video Chip Set S3 Trio64V+
Maximum Video 4MB EDO DRAM
Memory
I/O Options VESA feature connector, Local Peripheral
Bus
Data Bus 32-bit PCI
Video Types XVGA
Supported
Highest Resolution 1600 x 1200
Supported

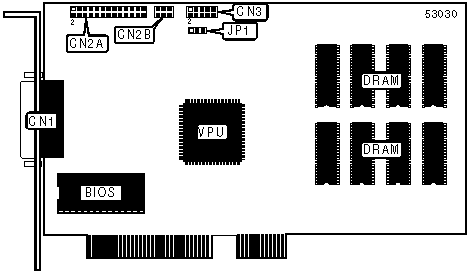

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------+-------+----------------------------+-------|
| 15-pin analog | CN1 | LPB extension to VESA | CN2B |
| video port | | connector | |
|---------------+-------+----------------------------+-------|
| VESA feature | CN2A | MPEG daughterboard | CN3 |
| connector | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| ยป | IRQ2 disabled | JP1 | Pins 2 & |
| | | | 3 closed |
|---+------------------------------------+-------+-----------|
| | IRQ2 enabled- must use with MPEG | JP1 | Pins 1 & |
| | daughterboard | | 2 closed |
+------------------------------------------------------------+
