# STB SYSTEMS, INC.
LIGHTSPEED 128
Card Type Multimedia Accelerator
Video Chip Set Tseng Labs
Maximum Video Memory 2.25 MB MDRAM
Video Types Supported XVGA
Highest Resolution Supported 1280 x 1024
Data Bus 32-bit PCI

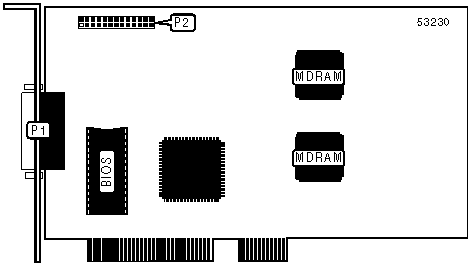

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin analog video | P1 | Feature connector | P2 |
| port | | | |
+------------------------------------------------------------+
