# SPEA SOFTWARE AG
CRUNCH IT
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported 1024 x 768
Data Bus 16-bit ISA
IMG IMG 1
+------------------------------------------------------------+

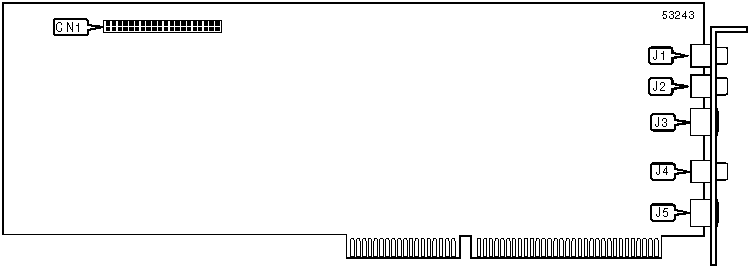

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-----------------------+-------+--------------------+-------|
| Proprietary connector | CN1 | S-video in | J3 |
|-----------------------+-------+--------------------+-------|
| Composite video in | J1 | Composite video | J4 |
| | | out | |
|-----------------------+-------+--------------------+-------|
| Composite video in | J2 | S-video out | J5 |
+------------------------------------------------------------+
