# SPEA SOFTWARE AG
PLAY IT
Card Type Video card, MPEG-1 decoder
Video Chip Set Trident
Maximum Video Memory Unidentified
Video Types Supported VGA
Highest Resolution Supported 1024 x 768
Data Bus 16-bit ISA

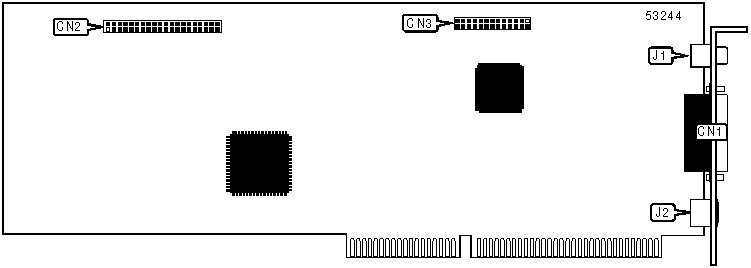

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| 15-pin analog video | CN1 | Audio out | J1 |
| port | | | |
|-------------------------+-------+------------------+-------|
| Proprietary connector | CN2 | VGA loop through | J2 |
|-------------------------+-------+------------------+-------|
| Feature connector | CN3 | | |
+------------------------------------------------------------+
