# SYMBIOS LOGIC
NCR 77C32BLT
Card Type Video card
Video Chip Set NCR
Maximum Video Memory 2MB
Data Bus 32-bit VESA Local Bus
Video Types Supported VGA
Highest Resolution Supported 1600 x 1200
IMG IMG 1
+------------------------------------------------------------+

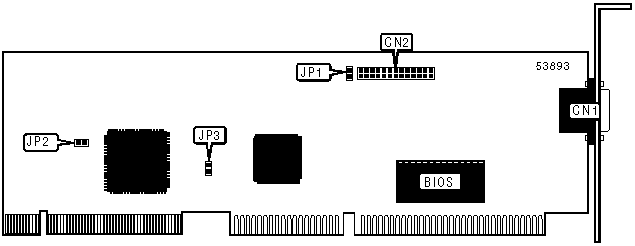

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------+-------+-------------------+-------|
| 15-pin video analog | CN1 | Feature connector | CN2 |
| video port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------------+-------+----------|
| Read wait state select 2 wait states | JP1 | Closed |
|-----------------------------------------+-------+----------|
| Read wait state select 1 wait state | JP1 | Open |
|-----------------------------------------+-------+----------|
| Factory configured – do not alter (IRQ) | JP2 | Open |
|-----------------------------------------+-------+----------|
| Factory configured – do not alter | JP3 | Open |
| (write wait state) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: Card accepts up to 2MB of video memory. The location |
| is unidentified. |
+------------------------------------------------------------+
