# SIIG, INC.
MGP III
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory Unidentified
Video Types Supported Monochrome
Highest Resolution Supported 720 x 348
Data Bus 8-bit ISA

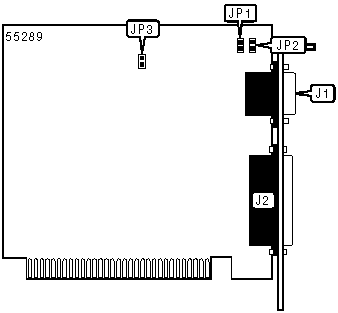

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| 9-pin analog video port | J1 | Parallel port | J2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| ยป | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PRINTER PORT SELECTION |
|------------------------------------------------------------|
| Address | JP1 | JP2 |
|-------------------------+----------------+-----------------|
| 3BCh | Open | Open |
|-------------------------+----------------+-----------------|
| 378h | Closed | Open |
|-------------------------+----------------+-----------------|
| 278h | Open | Closed |
|-------------------------+----------------+-----------------|
| Disabled | Closed | Closed |
+------------------------------------------------------------+
