# WESTERN DIGITAL CORPORATION
PARADISE VGA PLUS 16
Category Video
Video Types Supported VGA
Video Processor WD PVGA1A
Highest Resolution Supported 800 x 600
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 256KB
IMG IMG 1
+------------------------------------------------------------+

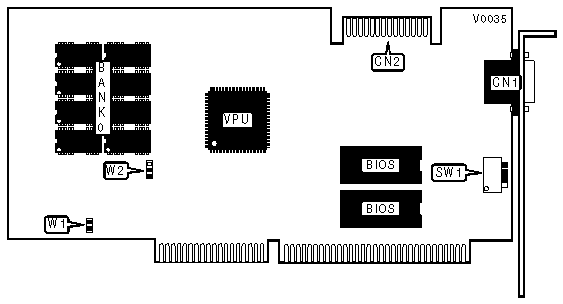

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Location | Purpose |
|-------------------------+----------+-------------+---------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper/Switch | Position |
|----------------------------+-------------------------------|
| W2 | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| SW1/3 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MANUAL 16-BIT BIOS CONFIGURATION |
|------------------------------------------------------------|
| Setting | W1 |
|--------------------------------------------+---------------|
| » | Initial setup and normal | Closed |
| | operation | |
|------------------------------------------------------------|
| Note:W1 should remain in the closed position unless |
| the 16TEST program has been run and it recommends |
| removing the jumper. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY TIMING SELECTION |
|------------------------------------------------------------|
| Timing | SW1/1 |
|---------------------------------------------+--------------|
| » | Standard PS/2 compatible display timing | Off |
|---+-----------------------------------------+--------------|
| | Special multi-frequency display timing | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA MODE SWITCHING CONFIGURATION |
|------------------------------------------------------------|
| Mode | SW1/2 |
|------------------------------------+-----------------------|
| » | PS/2 style | On |
|------+-----------------------------+-----------------------|
| | PC/AT style | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTOSENSE SELECTION |
|------------------------------------------------------------|
| Mode | SW1/4 |
|------------------------------------------+-----------------|
| » | Autosense for 16-bit BIOS enabled | On |
|---+--------------------------------------+-----------------|
| | Autosense disabled, force 8-bit BIOS | Off |
+------------------------------------------------------------+
