# UNIDENTIFIED
CPG-808
Category Video
Video Types Monochrome
Supported
Video Processor Unidentified (Exact location of VPU is
unidentified)
Highest 320 x 200
Resolution
Supported
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard 16KB (Exact location of memory is
Memory unidentified)

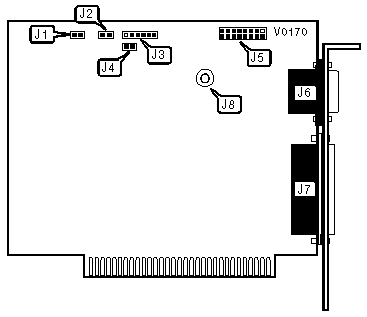

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Light pen | J3 | Parallel port | J7 |
| connector | | | |
|--------------------+----------+-----------------+----------|
| Game port | J5 | Composite video | J8 |
| | | port | |
|--------------------+----------+-----------------+----------|
| 9-pin analog video | J6 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J1 |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| GAME PORT CONFIGURATION |
|------------------------------------------------------------|
| Setting | J2 |
|----------------------------+-------------------------------|
| » | Enabled | Pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO TYPE SELECTION |
|------------------------------------------------------------|
| Type | J4 |
|-----------------------------------+------------------------|
| » | 9-pin analog video port | Pins 1 & 2 closed |
|---+-------------------------------+------------------------|
| | Composite monitor | Pins 2 & 3 closed |
+------------------------------------------------------------+
