# UNIDENTIFIED
LCD PORTABLE EGA
Category Video
Video Types Supported CGA/EGA/Monochrome
Video Processor Unidentified
Highest Resolution Supported 600 x 350
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 256KB

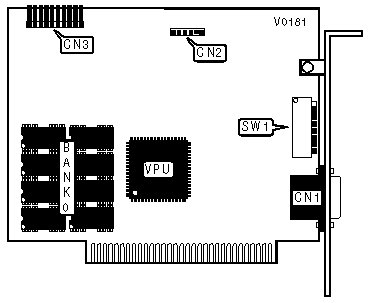

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | LCD display | CN3 |
| connector | | connector | |
|------------------------+----------+-------------+----------|
| Light pen connector | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR TYPE SELCTION |
|------------------------------------------------------------|
| Type |SW1/1 |SW1/2 |SW1/3 |SW1/4 |SW1/5 |SW1/7|SW1/8|
|-------------+------+------+------+------+------+-----+-----|
| CGA 40 x 25 | On | Off | Off | On | On | Off | Off |
|-------------+------+------+------+------+------+-----+-----|
| CGA 80 x 25 | On | On | On | Off | On | Off | Off |
|-------------+------+------+------+------+------+-----+-----|
| EGA 80 x 25 | Off | On | On | Off | On | Off | Off |
|-------------+------+------+------+------+------+-----+-----|
|Mono 40 x 25 | On | Off | On | Off | On | Off | Off |
|-------------+------+------+------+------+------+-----+-----|
|Mono 80 x 25 | Off | Off | On | Off | On | Off | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | SW1/6 |
|-------------------------------+----------------------------|
| LCD | Off |
|-------------------------------+----------------------------|
| External CRT | On |
+------------------------------------------------------------+
