# UNIDENTIFIED
MONO/COLOR/GRAPHICS/PRINTER CARD
Category Video
Video Types CGA/Monochrome
Supported
Video Processor Unidentified
Highest 640 X 200
Resolution
Supported
Data Bus Type 8 Bit ISA
Memory Type DRAM
Maximum Onboard 64KB (Exact location of memory is
Memory unidentified)

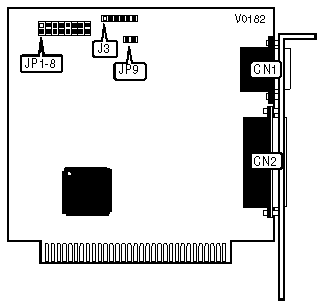

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------------+----------+------------+----------|
| 15-pin analog video | CN1 | Light pen | J3 |
| port | | connector | |
|-------------------------+----------+------------+----------|
| Parallel port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT | JP1 | JP2 |
|--------------------+-------------------+-------------------|
| 1 | Open | Closed |
|--------------------+-------------------+-------------------|
| 2 | Closed | Open |
|--------------------+-------------------+-------------------|
| 3 | Open | Open |
|--------------------+-------------------+-------------------|
| Disabled | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EMULATION TYPE SELECTION |
|------------------------------------------------------------|
| Type | JP3 |
|-------------------------------+----------------------------|
| Hercules | Open |
|-------------------------------+----------------------------|
| CGA | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-SWITCHING MODE CONFIGURATION |
|------------------------------------------------------------|
| Mode | JP4 |
|-------------------------------+----------------------------|
| Enabled | Open |
|-------------------------------+----------------------------|
| Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTO-SCREEN BLANKING CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP6 |
|-------------------------------+----------------------------|
| Enabled | Open |
|-------------------------------+----------------------------|
| Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COLOR EMULATION CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP7 |
|-------------------------------+----------------------------|
| Enabled | Open |
|-------------------------------+----------------------------|
| Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CGA FONT SELECTION |
|------------------------------------------------------------|
| Font | JP9 |
|-----------------------------+------------------------------|
| 7 x 7 | Closed |
|-----------------------------+------------------------------|
| 5 x 7 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT CONFIGURATION |
|------------------------------------------------------------|
| LPT | JP1 | JP2 |
|------------------+--------------------+--------------------|
| 1 | Open | Closed |
|------------------+--------------------+--------------------|
| 2 | Closed | Open |
|------------------+--------------------+--------------------|
| 3 | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FACTORY CONFIGURED - DO NOT ALTER |
|------------------------------------------------------------|
| Jumper | Position |
|-----------------------------+------------------------------|
| JP5 | Closed |
|-----------------------------+------------------------------|
| JP8 | Closed |
+------------------------------------------------------------+
