TVGA 9000I
Category Video
Video Types Supported XVGA
Video Processor Trident TVGA900I
Highest Resolution Supported 1024 x 768
Data Bus Type VESA local bus
Memory Type DRAM
Maximum Onboard Memory 512KB
IMG IMG 1
+------------------------------------------------------------+

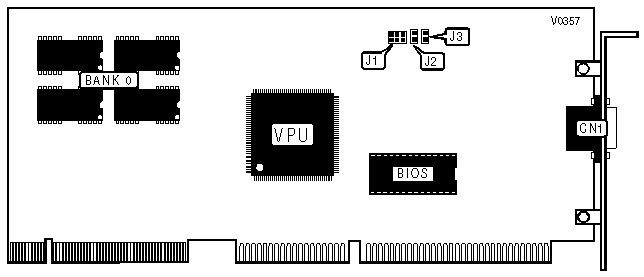

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCAN RATE SELECT |
|------------------------------------------------------------|
| Setting | J2 |
|-----------------------------------+------------------------|
| » | Normal scan rate | Closed |
|---+-------------------------------+------------------------|
| | High scan rate | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| AUTODETECT CONFIGURATION |
|------------------------------------------------------------|
| Autodetect | J3 |
|---------------------------------+--------------------------|
| » | Enabled | Open |
|----+----------------------------+--------------------------|
| | Disabled | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CARD SLOT SIZE CONFIGURATION |
|------------------------------------------------------------|
| Slot Size Used | J1 |
|--------------------------------+---------------------------|
| » | 16-bit | All open |
|------+-------------------------+---------------------------|
| | 8-bit | All closed |
+------------------------------------------------------------+
