# UNIDENTIFIED
CGA-PC/T
Category Graphics/printer card
Video Type CGA/Monochrome
Video Processor Unknown
Highest Resolution Supported 640 x 200
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB (Location unknown)

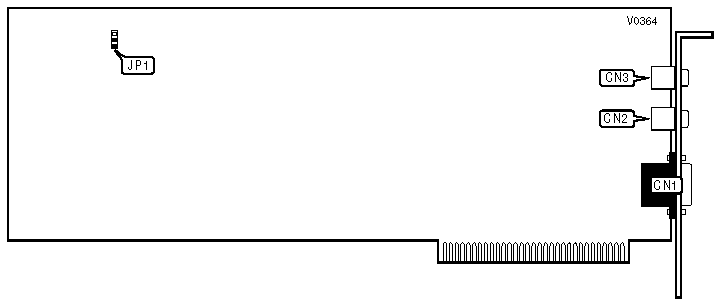

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| 9-pin analog | CN1 | RCA jack 2 (Color | CN3 |
| video port | | Composite) | |
|-----------------+----------+--------------------+----------|
| RCA jack 1 (B/W | CN2 | | |
| composite) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCREEN BLINK CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP1 |
|----------------------------------+-------------------------|
| ยป | Screen blink disabled | Pins 1 & 2 closed |
|---+------------------------------+-------------------------|
| | Screen blink enabled | Pins 2 & 3 closed |
+------------------------------------------------------------+
