# UNIDENTIFIED
TVGA9400CXI
Category Video
Video Types Supported XVGA
Video Processor Trident
Highest Resolution Supported 1280 x 1024
Data Bus Type VESA local bus
Memory Type DRAM
Maximum Onboard Memory 2048KB

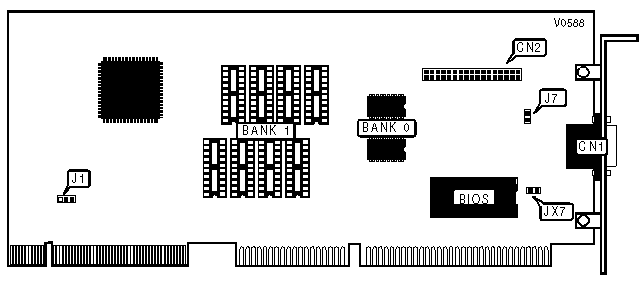

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR INTERLACE CONFIGURATION |
|------------------------------------------------------------|
| Setting | J7 |
|-------------------------------------+----------------------|
| » | Interlaced | Closed |
|-----+-------------------------------+----------------------|
| | Non-interlaced | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK CONFIGURATION |
|------------------------------------------------------------|
| Speed(MHz) | JX7 |
|------------------------------+-----------------------------|
| » | <=33MHz | Open |
|----+-------------------------+-----------------------------|
| | >33MHz | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VESA LOCAL BUS TIMING |
|------------------------------------------------------------|
| Setting | J1 |
|----------------------------+-------------------------------|
| » | Standard | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Alternate | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 1024KB | (2) 256K x 16 | NONE |
|----------------+---------------------+---------------------|
| 2048KB | (2) 256K x 16 | (8) 256K x 4 |
+------------------------------------------------------------+
