# UNIDENTIFIED
HERCULES GRAPHICS CARD
Category Video
Video Types Supported Monochrome
Video Processor Unidentified
Highest Resolution Supported 720 X 348
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB

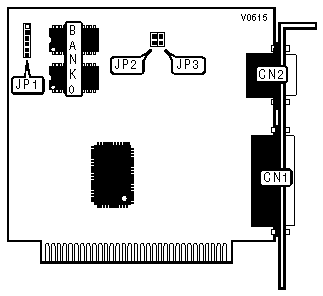

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------------+----------+------------+----------|
| Parallel port | CN1 | Light pen | JP1 |
| | | connector | |
|-------------------------+----------+------------+----------|
| 15-pin analog video | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT ADDRESS |
|------------------------------------------------------------|
| Address | JP2 | JP3 |
|--------------------+-------------------+-------------------|
| 278h | Closed | Closed |
|--------------------+-------------------+-------------------|
| 378h | Open | Closed |
|--------------------+-------------------+-------------------|
| 3BCh | Open | Open |
|--------------------+-------------------+-------------------|
| Disabled | Closed | Open |
+------------------------------------------------------------+
