# UNIDENTIFIED
MGP TM6066A
Category Video
Video Types Supported MDA
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8-bit ISA
Memory Type Unidentified
Maximum Onboard Memory Unidentified
IMG IMG 1
+------------------------------------------------------------+

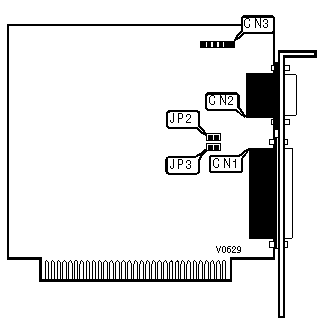

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Parallel port | CN1 | 6-pin light pen | CN3 |
| | | port | |
|-------------------+----------+------------------+----------|
| 15-pin Video port | CN2 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Purpose | Jumper | Setting |
|---------------------------+---------------+----------------|
| Printer port disable | JP3 | Closed |
|---------------------------+---------------+----------------|
| Printer port enable | JP3 | Open |
|---------------------------+---------------+----------------|
| Character Generator 2764 | JP4 | Closed |
|---------------------------+---------------+----------------|
| Character Generator 23C01 | JP4 | Open |
+------------------------------------------------------------+
