# UNIDENTIFIED
M.G.P. PLUS
Category Video
Video Types Supported MDA
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 64KB

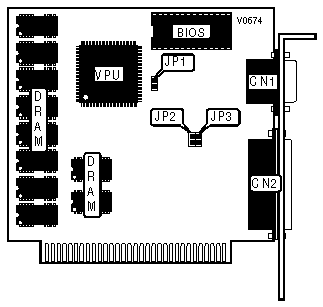

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| 15-pin analog | CN1 | 25-pin parallel | CN2 |
| video port | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIOS SELECT |
|------------------------------------------------------------|
| Setting | JP1 |
|------------------------------+-----------------------------|
| UM2301 | Open |
|------------------------------+-----------------------------|
| 2764 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT SELECT |
|------------------------------------------------------------|
| Setting | JP2 | JP3 |
|--------------------+-------------------+-------------------|
| Disable | Closed | Closed |
|--------------------+-------------------+-------------------|
| LPT3 - 278 | Open | Closed |
|--------------------+-------------------+-------------------|
| LPT2 - 378 | Closed | Open |
|--------------------+-------------------+-------------------|
| LPT1 - 3BC | Open | Open |
+------------------------------------------------------------+
