# UNIDENTIFIED
16 BIT VGA CARD
Card Type Video card
Video Chip Set Unidentified
Maximum Video Memory 512KB DRAM
Video Types Supported VGA
Highest Resolution Supported 800 x 600
Data Bus 16-bit ISA

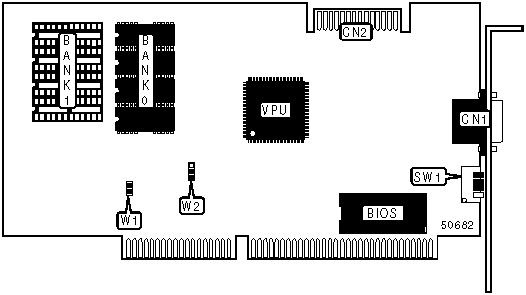

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 8/16-BIT BUS SELECTION |
|------------------------------------------------------------|
| Setting | W1 |
|-----------------------------------+------------------------|
| » | AutoSense enabled | Closed |
|---+-------------------------------+------------------------|
| | Force 16-bit bus selection | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FEATURE CONNECTOR |
|------------------------------------------------------------|
| Setting | W2 |
|---------------------------------------+--------------------|
| » | Feature connector disabled | Pins 1 & 2 closed |
|-----+---------------------------------+--------------------|
| | Feature connector enabled | Pins 2 & 3 closed |
|------------------------------------------------------------|
| Note: Enabling the feature connector disables 800 x 600 |
| graphics and 132 column text mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR TYPE |
|------------------------------------------------------------|
| Setting | SW1/1 |
|-----------------------------------+------------------------|
| » | Standard PS/2 type | Off |
|---+-------------------------------+------------------------|
| | Multi-frequency type | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA MODE SWITCHING |
|------------------------------------------------------------|
| Setting | SW1/2 |
|-----------------------------------+------------------------|
| » | PS/2 style | On |
|---+-------------------------------+------------------------|
| | PC/AT style | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| 8-BIT BUS SELECTION |
|------------------------------------------------------------|
| Setting | SW1/4 |
|-----------------------------------+------------------------|
| » | AutoSense enabled | On |
|---+-------------------------------+------------------------|
| | Force 8-bit bus selection | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| » | 256KB | (4) 64KB x 8 | None |
|---+--------------+--------------------+--------------------|
| | 512KB | (4) 64KB x 8 | (4) 64KB x 8 |
+------------------------------------------------------------+
