AVGA3B
Category Video
Video Types Supported XVGA
Video Processor Cirrus Logic, Inc.
Highest Resolution Supported 1280 x 1024
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

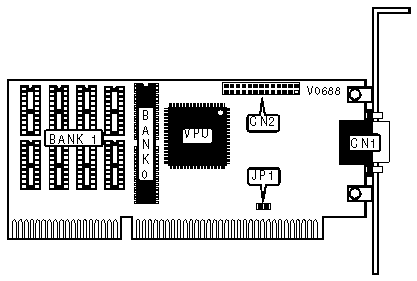

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| 15-pin analog video | CN1 | VESA Feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ZERO WAIT STATE |
|------------------------------------------------------------|
| Setting | JP1 |
|-------------------------------+----------------------------|
| Enabled | Closed |
|-------------------------------+----------------------------|
| Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| ยป 1MB | (2) 512K x 8 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 512K x 8 | (8) 256K x 4 |
+------------------------------------------------------------+
