# UNIDENTIFIED
MAGIC COMBO VIDEO ADAPTER
Category Video
Video Types Supported CGA
Video Processor Unidentified
Highest Resolution Supported 720 x 348 (Monochrome)
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory Unidentified

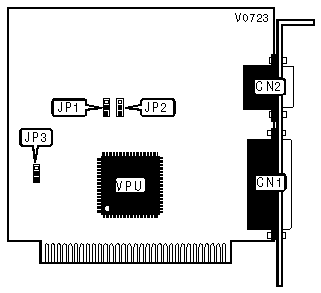

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Parallel port | CN1 | 15-pin analog video | CN2 |
| | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR TYPE |
|------------------------------------------------------------|
| Setting | JP1 |
|------------------------------+-----------------------------|
| Monochrome monitor | Pins 1 & 2 closed |
|------------------------------+-----------------------------|
| Color monitor | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MODE |
|------------------------------------------------------------|
| Setting | JP2 |
|----------------------------+-------------------------------|
| MGA/MDA | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| CGA | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT |
|------------------------------------------------------------|
| Setting | JP3 |
|----------------------------+-------------------------------|
| ยป Enabled | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| Disabled | Pins 1& 2 closed |
+------------------------------------------------------------+
