# UNIDENTIFIED
PAELIT VGA/1024 (16-BIT VERSION)
Category Video
Video Types Supported XVGA
Video Processor Trident Microsystems, Inc.
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 512KB

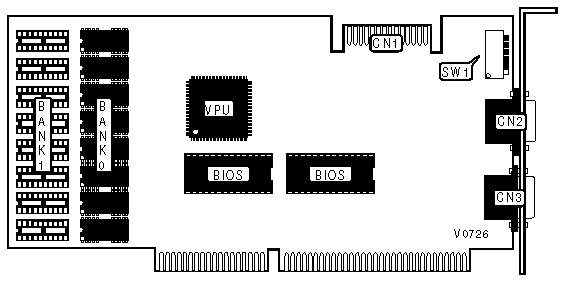

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| VESA Feature | CN1 | 9-pin digital | CN3 |
| connector | | video port | |
|----------------------+----------+---------------+----------|
| 15-pin analog video | CN2 | | |
| port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MONITOR TYPE |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
|------------+-------+-------+-------+-------+-------+-------|
| PS/2, | On | On | On | On | On | On |
| Multisync | | | | | | |
| monitors | | | | | | |
|------------+-------+-------+-------+-------+-------+-------|
| TTL | Off | On | On | On | On | On |
| monitors | | | | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| ยป 256KB | (8) 256K x 1 | None |
|------------------+--------------------+--------------------|
| 512KB | (8) 256K x 1 | (8) 256K x 1 |
+------------------------------------------------------------+
