# UNIDENTIFIED
AVGA1
Category Video
Video Types Supported VGA
Video Processor Unidentified
Highest Resolution Supported 800 x 600
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 256KB

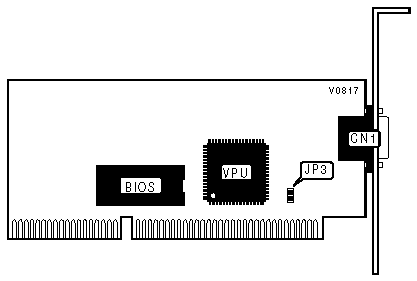

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ZERO WAIT STATE |
|------------------------------------------------------------|
| » Setting | JP3 |
|---------------------------------+--------------------------|
| » | Disabled | Open |
|---+-----------------------------+--------------------------|
| » | Enabled | Closed |
+------------------------------------------------------------+
