V2VB
Category Video
Video Types Supported XVGA
Video Processor Avance Logic ALG2228
Highest Resolution Supported 1280 x 1024
Data Bus Type 32-bit VESA local bus
Memory Type DRAM
Maximum Onboard Memory 2MB
IMG IMG 1
+------------------------------------------------------------+

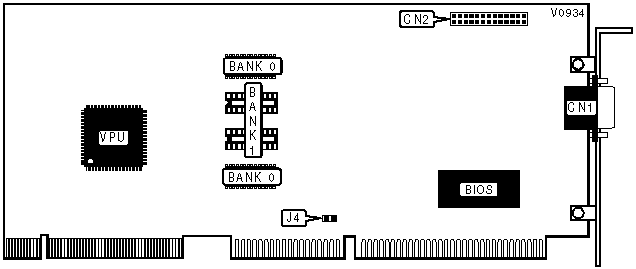

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ADS DELAY CONFIGURATION |
|------------------------------------------------------------|
| Setting | J4 |
|----------------------------------+-------------------------|
| ยป | Disabled | Closed |
|----+-----------------------------+-------------------------|
| | Enabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
