ET4000 SUPER VGA VER. 1A
Category Video
Video Types Supported XVGA
Video Processor Tseng Laboritories
Highest Resolution Supported 1280 X 1024
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 1MB

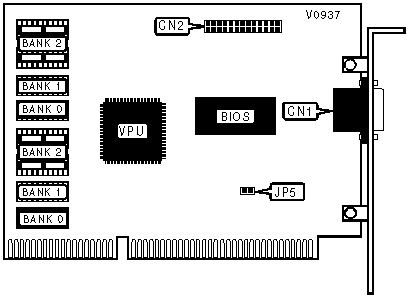

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WAIT STATE SELECTION |
|------------------------------------------------------------|
| Setting | JP5 |
|---------------------------------+--------------------------|
| ยป | Enabled | Closed |
|---+-----------------------------+--------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 256KB | (2) 256 x 4 | None | None |
|------------+---------------+---------------+---------------|
| 512KB | (2) 256 x 4 | (2) 256 x 4 | None |
|------------+---------------+---------------+---------------|
| 1MB | (2) 256 x 4 | (2) 256 x 4 | (4) 256 x 4 |
+------------------------------------------------------------+
