# UNIDENTIFIED
KT VGA MX (1MB)
Category Video
Video Types Supported XVGA
Video Processor MX86010
Highest Resolution Supported 1024 x 768
Data Bus Type 16-bit ISA
Memory Type DRAM
Maximum Onboard Memory 1MB

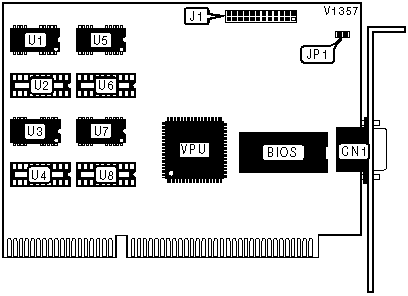

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------------+----------+-------------+----------|
| 15-pin analog video | CN1 | VGA feature | J1 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VGA DISPLAY MODE CONFIGURATION |
|------------------------------------------------------------|
| Mode | JP1 |
|-------------------------------+----------------------------|
| Color | Open |
|-------------------------------+----------------------------|
| Monochrome | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Memory | Bank 0 (U1, U3, U5, U7) | Bank 1 (U2, U4, U6, U8) |
|--------+-------------------------+-------------------------|
| 512KB | (4) 256K x 4 | NONE |
|--------+-------------------------+-------------------------|
| 1MB | (4) 256K x 4 | (4) 256K x 4 |
+------------------------------------------------------------+
