# WESTERN DIGITAL CORPORATION
PARADISE PIPELINE 64PCI (REV.2)
Category Video
Video Types Supported XVGA
Video Processor Western Digital
Highest Resolution Supported 1600 x 1200
Data Bus Type 32-bit PCI
Memory Type DRAM (EDO)
Maximum Onboard Memory 2MB

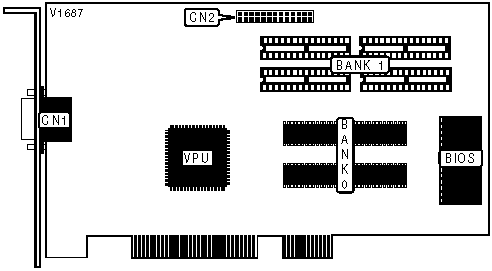

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| 15-pin analog | CN1 | Feature connector | CN2 |
| video port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 8 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 8 | (4) 256K x 8 |
+------------------------------------------------------------+
