# WESTERN DIGITAL CORPORATION
PARADISE PIPELINE 64PCI (REV.1)
Category Video
Video Types Supported XVGA
Video Processor Western Digital
Highest Resolution Supported 1600 x 1200
Data Bus Type 32-bit PCI
Memory Type DRAM (EDO)
Maximum Onboard Memory 4MB

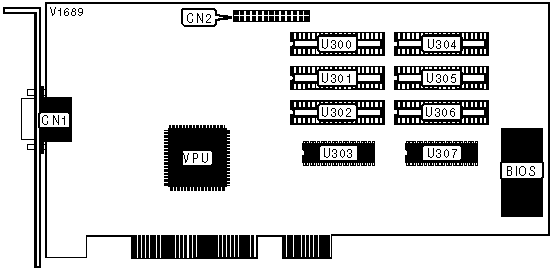

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| 15-pin analog | CN1 | Feature connector | CN2 |
| video port | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 (U303 | Bank 1 (U301 | Bank 2 (U300,U304, |
| | & U307) | & U305) | U302 & U306) |
|------+---------------+---------------+---------------------|
| 1MB | (2) 256K x 16 | NONE | NONE |
|------+---------------+---------------+---------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 | NONE |
|------+---------------+---------------+---------------------|
| 4MB | (2) 256K x 16 | (2) 256K x 16 | (4) 256K x 16 |
+------------------------------------------------------------+
