# UNIDENTIFIED
SUPERVGA 1510W REV. 3.0
Category Video
Video Types Supported XVGA
Video Processor Unidentified
Highest Resolution Supported 800 x 600
Data Bus Type 8-bit ISA
Memory Type DRAM
Maximum Onboard Memory 256KB

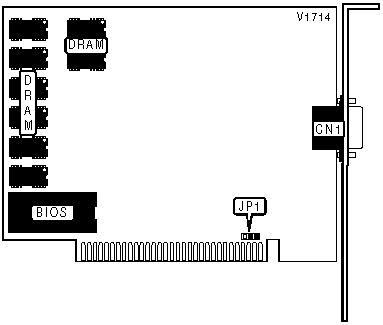

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| 15-pin analog video port | CN1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| IRQ2 | JP1 |
|----------------------------+-------------------------------|
| ยป | Enabled | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | Disabled | Pins 1 & 2 closed |
+------------------------------------------------------------+
