# UNIDENTIFIED
3088A2 MGP
Category Video/Printer
Video Types Supported Monochrome
Video Processor Unidentified
Highest Resolution Supported 720 x 348
Data Bus Type 8-bit ISA
Memory Type N/A
Maximum Onboard Memory 64KB (Location unidentified)

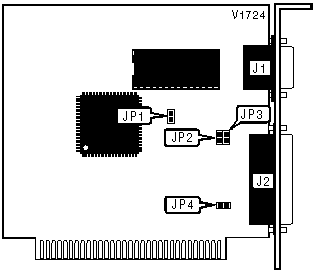

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| 15-pin analog | J1 | 25-pin parallel | J2 |
| video port | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ROM SIZE |
|------------------------------------------------------------|
| Size | JP1 |
|-------------------------------+----------------------------|
| 32KB (2732) | Open |
|-------------------------------+----------------------------|
| 64KB (2764) | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT |
|------------------------------------------------------------|
| Setting | JP2 | JP3 |
|--------------------+-------------------+-------------------|
| LPT1 (3BCh) | Open | Open |
|--------------------+-------------------+-------------------|
| LPT2 (378h) | Closed | Open |
|--------------------+-------------------+-------------------|
| LPT3 (278h) | Open | Closed |
|--------------------+-------------------+-------------------|
| Disabled | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| EXTERNAL POWER |
|------------------------------------------------------------|
| Setting | JP4 |
|-------------------------------+----------------------------|
| Disabled | Open |
|-------------------------------+----------------------------|
| +12V | Closed |
+------------------------------------------------------------+
