# WESTERN DIGITAL CORPORATION
PARADISE SHORT COLOR CARD
Card Type Video card
Video Chip Set Unidentified
Highest Resolution Supported 640 x 200
Maximum Video Memory 16KB RAM (Type unidentified)
Data Bus 8-bit ISA
Video Types Supported CGA

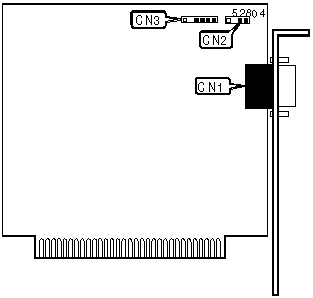

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| 9-pin analog video | CN1 | Light pen connector | CN3 |
| port | | | |
|----------------------+-------+---------------------+-------|
| RF modulator | CN2 | | |
| connector | | | |
+------------------------------------------------------------+
