       # VISIONETICS INTERNATIONAL

          TV MASTER

          Card Type          Tuner card
          Video Chip Set     Unidentified
          Maximum Video      None
          Memory
          Video Types        Unidentified
          Supported
          Highest Resolution Unidentified
          Supported
          Data Bus           16-bit ISA
          Format Supported   NTSC, NTSC Japan, PAL B/G, PAL D/K, PAL I,
                             SECAM TV

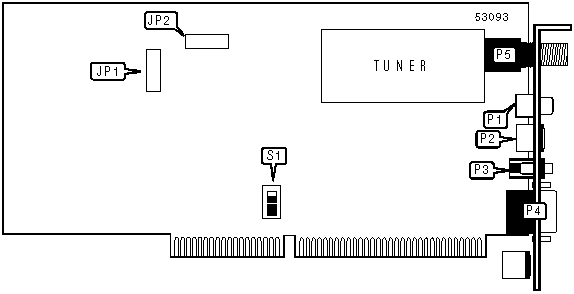

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      | Label |       Function        | Label |
          |--------------------+-------+-----------------------+-------|
          | Teletext module    |  JP1  | Audio out             |  P3   |
          |--------------------+-------+-----------------------+-------|
          | Teletext module    |  JP2  | 15-pin analog video   |  P4   |
          |                    |       | port                  |       |
          |--------------------+-------+-----------------------+-------|
          | Composite video in |  P1   | RF connector          |  P5   |
          |--------------------+-------+-----------------------+-------|
          | S-video out        |  P2   |                       |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 BASE I/O ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |      Setting      |   S1/1   |  S1/2   |  S1/3   |  S1/4   |
          |-------------------+----------+---------+---------+---------|
          |       |   700h    |    On    |   On    |   On    |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   710h    |    On    |   On    |   On    |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   720h    |    On    |   On    |   Off   |   On    |
          |-------+-----------+----------+---------+---------+---------|
          | »     |   730h    |    On    |   On    |   Off   |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   740h    |    On    |   Off   |   On    |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   750h    |    On    |   Off   |   On    |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   760h    |    On    |   Off   |   Off   |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   770h    |    On    |   Off   |   Off   |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   780h    |   Off    |   On    |   On    |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   790h    |   Off    |   On    |   On    |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   7A0h    |   Off    |   On    |   Off   |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   7B0h    |   Off    |   On    |   Off   |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   7C0h    |   Off    |   Off   |   On    |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   7D0h    |   Off    |   Off   |   On    |   Off   |
          |-------+-----------+----------+---------+---------+---------|
          |       |   7E0h    |   Off    |   Off   |   Off   |   On    |
          |-------+-----------+----------+---------+---------+---------|
          |       |   7F0h    |   Off    |   Off   |   Off   |   Off   |
          |------------------------------------------------------------|
          |      Note:Exact position of "On" & "Off" is unidentifed.   |
          +------------------------------------------------------------+
