# WESTERN DIGITAL CORPORATION
PARADISE 8-BIT VGA
Card Type Video card
Video Chip Set Unidentified
Highest Resolution Supported 800 x 600
Maximum Video Memory Unidentified
Data Bus 16-bit EISA
Video Types Supported XVGA

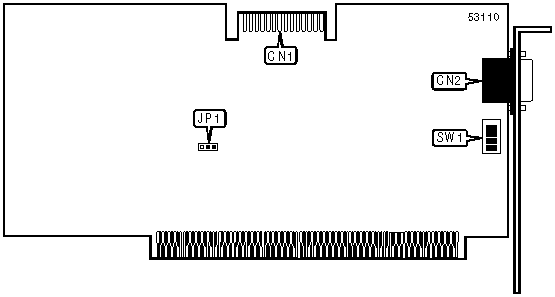

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Feature connector | CN1 | 15-pin analog video | CN2 |
| | | port | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------------+-------+-----------|
| » | Factory configured - do not alter | JP1 | Pins 1 & |
| | | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Monitor type select standard PS/2 | SW1/1 | Off |
|---+------------------------------------+-------+-----------|
| | Monitor type select | SW1/1 | On |
| | multi-frequency | | |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | SW1/2 | Off |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | SW1/3 | Off |
|---+------------------------------------+-------+-----------|
| » | Factory configured - do not alter | SW1/4 | Off |
+------------------------------------------------------------+
